Scanner Barcode Scanlogic CS-1000PLUS
Kategori Barcode Scanner, Blog
Di lihat 3619 kali
Harga Rp 1.500.000
Beli Sekarang

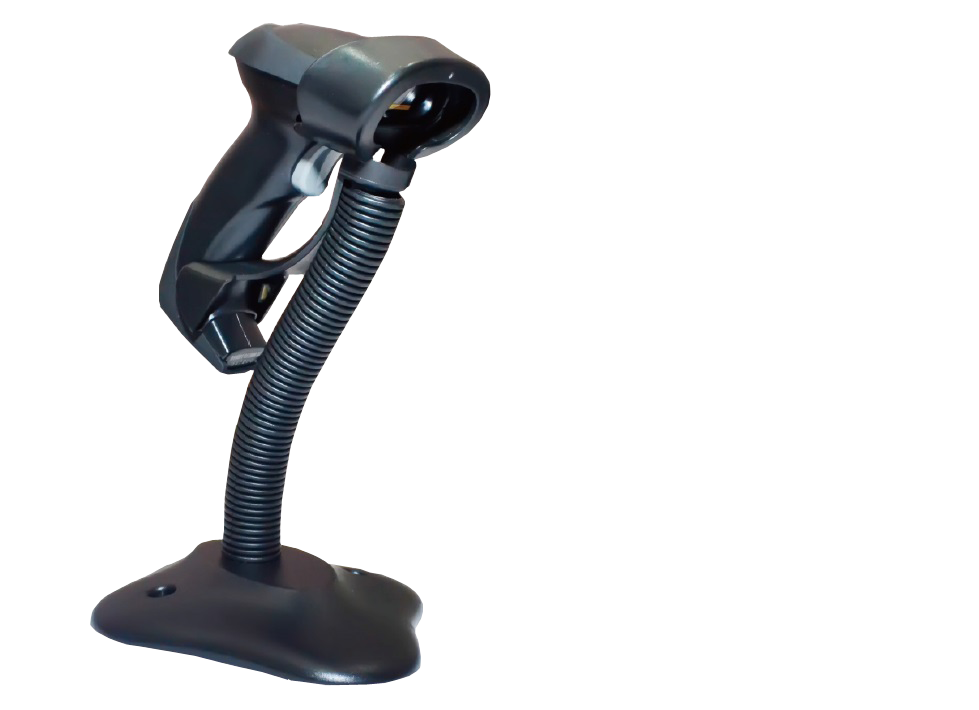

Scanner Barcode Scanlogic CS-1000PLUS

Scanner Barcode Scanlogic CS-1000PLUS

Scanner Barcode Scanlogic CS-1000PLUSFitur ScanLOGIC CS-1000PLUS

Desain yang Nyaman

Memastikan kenyamanan dan produktivitas operator dan dengan
Desain berbentuk senapan, dioptimalkan untuk handheld intensif


Jauh dari kode bar

Deteksi Interface Otomatis:
Mendukung semua interface yang populer dalam satu perangkat – USB
/ PS2 / RS232 interface


Tahan lama

IP 52 standar dengan bukti drop 4 meter
Lantai beton dan juga debu bukti

Operasi Pemicu Otomatis

Baca kode bar secara otomatis tanpa
Pemrograman pengaturan saat menempatkan pemindai
Ke dalam Stand.



Scanner Barcode Scanlogic CS-1000PLUS



Spesifikasi Scanlogic CS-1000PLUS

Laser 650nm laser diode
Scanning Rate 100 scans / sec
Auto Scanning With stand
Scanning Angle ±60°, ±65°, ±42° (Skew, Pitch, Roll)
Min. Element Width 0.127mm (5mil)
Decode Capability UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 full ASCII,
Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of
5, Codabar(NW7), Code 128, Code 93, Code 11(USD-8), MSI/Plessey,
UK/Plessey, UCC/EAN 128, China Post, China Finance, GS1 DataBar
(formerly RSS) variants
Input Voltage 5 VDC ± 0.25V
Power 500 mW (Operating); 950 mW (Max.)
Current 100 mA (Operating); 190 mA (Max.)
Standby Current <250uA
Indicator Beeper, LED
Interface Supported Keyboard wedge, RS-232, USB Keyboard, USB virtual COM
Operating Mode Hand-held, Auto-detection (Optional)
Dimensions Height x Width x Depth:9.5cm x 6.7cm x 15.4cm
Weight 168g, without cable
Cable Straight 2.0m
Connector Type RJ-45 phone jack connector
Case Material ABS + PC
Temperature 0° to 50°C (32° to 120°F), Operating; -40° to 60°C
(-40° to 140°F), Storage
Humidity 5% to 95% (non-condensing)
Programing Method Manual (reading special barcode)
Program Upgrade Online
Decoding Depth 5 mil: 40-110mm
10 mil: 10-280mm
13 mil: 15-315mm
16 mil: 25-385mm
35 mil: 145-630mm
Safety Laser safety: EN60825-1, Class 1
EMC: EN 55022, EN 55024
Electrical safety: EN 60950-1
Drop resistance: Multiple 4.0m (13.1 ft) drops to concrete
Protection class: IP52



Untuk info dan pemesanan Scanner Barcode Scanlogic CS-1000 PLUS bisa anda hubungi di bawah ini;
