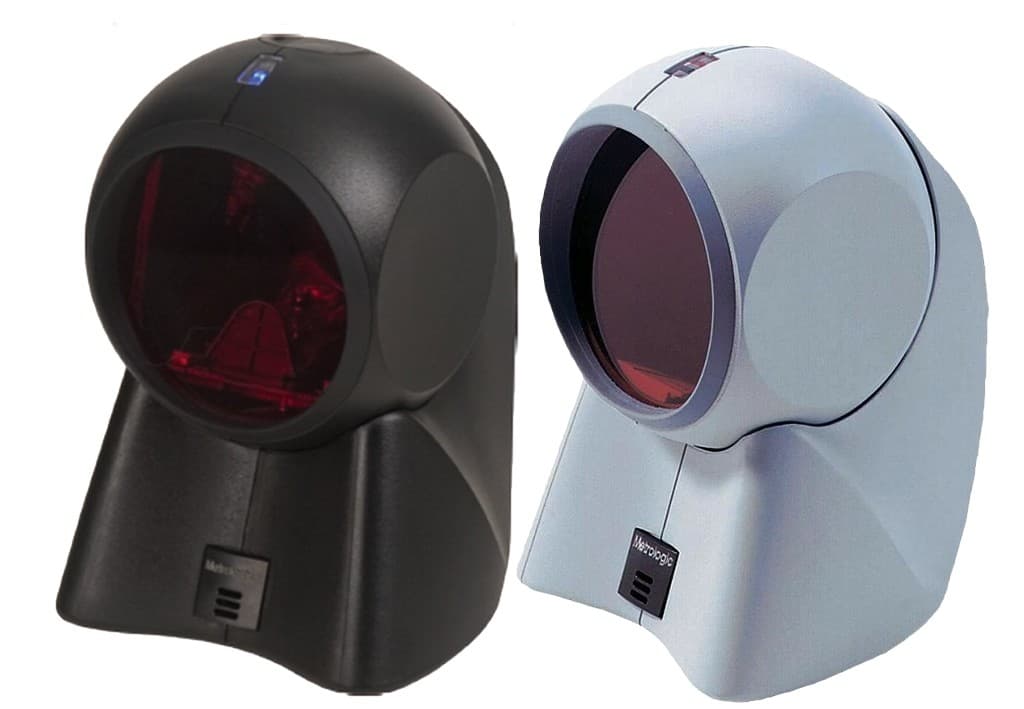

Scanner Barcode HONEYWELL MS7120 Orbit

Honeywell MS7120 ORBIT Merupakan serangkaian scanner yang agresif dalam pemindaian da dilengkapi dengan design yang menarik, solusi bagi anda yang membutuhkan scanner yang responsive. Honeywell memaksimalkan kepuasan pelanggan dan efisiensi karyawan dengan mempatenkan 20 line scan pola, mudah dan cepat dalam men-scan yaitu 112 per detik.

FEATURES :

• 20 Scan Line Omnidirectional Pattern: Provides
aggressive scanning as an additional benefit to hand
presentation applications

• Sweet Spot Scanning: Engineered “sweet spot” to
optimize scan performance and first pass read rate

• Adjustable Scan Head: Ability to tilt scanner 30° for
targeted scanning or larger products

• Flash ROM: Protects POS investment with free firmware
updates via MetroSet®2 software and standard PC

• Automatic Scanning Operation: Simply present a bar
code and the unit scans in a single pass

• Built-in RF EAS Antenna (Orbit 7180 only): Increases
efficiency by simultaneously deactivating RF EAS tags
and decoding bar codes

Technical Specifications :

Mechanical

Dimensions (LxWxH) 105 mm x 102 mm x 150 mm (4.1˝ x 4.0˝ x 5.9˝)
Weight 400 g (14.1 oz)

Electrical

Input Voltage 5 VDC ± 0.25 V
Operating Power 900 mW (180 mA @ 5 V)
Standby Power 850 mW (170mA @ 5 V)
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 468xx (RS485), Light Pen Wand Emulation

Environmental

Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand 1.2 m (4´) drops
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 4842 Lux

Scan Performance

Scan Pattern Omnidirectional: 5 fields of 4 parallel lines; button activated single line (7180)
Scan Speed Omnidirectional: 1120 scan lines per second; single line: 56 scan lines per second (7180)
Print Contrast 35% minimum reflectance difference
Pitch, Skew 60°, 60°
Decode Capability Reads standard 1D and GS1 DataBar symbologies
Warranty 3 year factory warranty
